Holds 1600 bushels. Unload speed up to 750 bu/min.

Load an entire semi-trailer in two minutes or less. The 1500 Dual Auger grain cart is our largest capacity grain cart, holding 1600 bushels. An external corner auger provides unmatched line-of-sight for operator visibility. Expertly designed to reduce neck strain and fatigue.

Every Kinze Dual Auger Grain cart comes with the only 2-year warranty in the industry.


Cart capacity and hitch weight are based on #2 corn at 15% moisture (56lb test weight). Cart capacity and hitch weight may vary based on crop type, grade, moisture and other environmental factors. Bushels per minute may vary with moisture content of grain and/or PTO rpm.


Configurations

  • Dual Auger
Only Available:

US/Canada

Details

  • Capacity: 1600 bushels
  • Unload speed: 750 bu/min
  • Available in: US / Canada
Find Your Dealer

Manuals

Learn more about the technology of this grain cart. See the specs and parts breakdown.

Spec Sheet

Can’t decide? See all of our dual auger grain carts side by side with basic details for each.

Our Features

Low, More Stable Center of Gravity

The low profile makes it easier to line up the combine. The low center of gravity gives you greater stability and clearance. The full-length horizontal auger eliminates wasted space,

Exceptional Line-of-Sight Visibility & Precise Grain Placement

Kinze’s exclusive pivoting external corner auger design allows for unparalleled operator line of sight and comfort while maneuvering the grain cart. Additionally, the corner auger allows the operator to adjust the auger more than 2' in height and nearly 2' in reach, along with a hydraulically adjustable spout for precise grain placement. The external auger tucks in for narrower transport width.

Auto Reset Torque Limiting Clutch

Protects the driveline and automatically resets without replacing components. Increases safety and minimizes damage with easy restart. Standard on all Kinze carts.

Superior Grain Control

Equipped with an on-demand belt drive system, a hydraulic flow gate, full-length 22” horizontal auger and a 24” vertical auger for controlled, quick grain movement. The hydraulic horizontal disengagement provides peace of mind with the quick start and stop functionality for the flow of grain.

New and Improved Joystick Control

Standard on all dual auger grain carts, this intuitive, ergonomic joystick design makes it easy to control four different cart functions: tip spout, horizontal auger on/off, flow gate, and auger tilt. It also reduces tractor SCV requirements to only two.

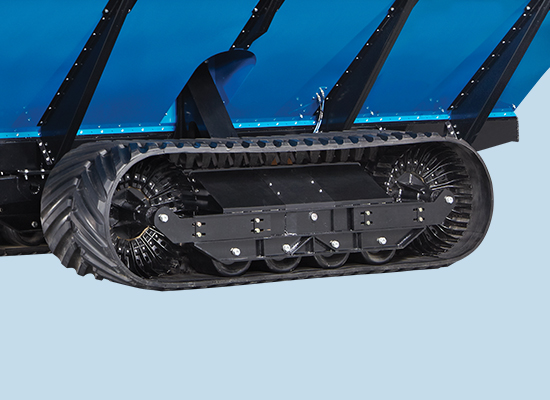

High Performance Tracks

The 1500 grain cart come standard with rubber-tracked undercarriage that is 36” wide and has 108” of ground contact for reduced soil compaction. Rugged cast-iron and segmented end-wheels help to minimize maintenance and adjustments. Four mid-wheels on each side ensure durability and increased track life.
