Big on Features, Low on Cost

Split row options, pivot fold convenience, and bulk fill efficiency all in one compact, economical, and durable planter. Plant corn, soybeans, and cover crops all with the same hitch pin planter. Because of its relatively small size, the Kinze 3500 is ideal for smaller farms and smaller field sizes, and the pivot fold functionality provides narrow road transport and easy maneuverability. The 3500 has optional bulk-fill hoppers for 1,760 liters of seed-carrying capacity, making it the only planter in this class equipped with bulk fill. NEW for 2020 is the 8 row 70 cm configuration!

3500 Mg 9604 Tu201801 740X450 3500 In Field 201710 740X450 3500 Bulk Fill 740X450

Kinze 3500 Planter
3500 Mg 9604 Tu201801 740X450 3500 In Field 201710 740X450 3500 Bulk Fill 740X450


  • 6 Row 76 cm
  • 8 Row 76 cm


  • Pivot fold
  • Meter: Finger Pickup, Brush, Vacuum
  • Drive: Ground Contact
  • Split Rows
  • Seed Handling: Row Unit Hoppers
  • Fertilizer: Liquid, Dry
Find Your Dealer

Retrofit Kits

Update your Kinze planter with new technologies to boost yield and increase profit.

Our Features

Dsc 0628 3500 Lift Zoom

Field to Road - Safe, Fast and Easy

The pivot fold frame of the 3500 quickly lifts and rotates to a narrow 3.4 meter transport width to get you quickly and safely down the road. Maintenance is also easier and more efficient with planter components at a comfortable working height.

Split Row Kinze

Split Rows Without Slowing for Residue

Switch from 76 cm to 70 cm row spacing quickly and easily with one planter. With the exclusive Kinze push split row units positioned on twin tool bars, trash is able to flow easily and cleanly beneath the planter. This improves seed placement accuracy and planting efficiency over other split row planters.

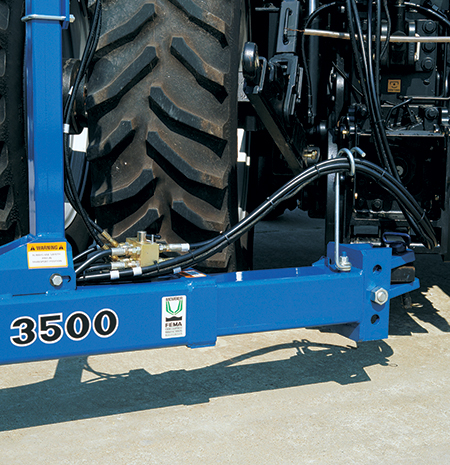

3500 Hitch

Drop the Hitch Pin and Go

While robust on features and functionality, the 3500 has very low hydraulic requirements – making it easy to pair with the tractors in your shed. To fold and unfold the planter, no control box is required.

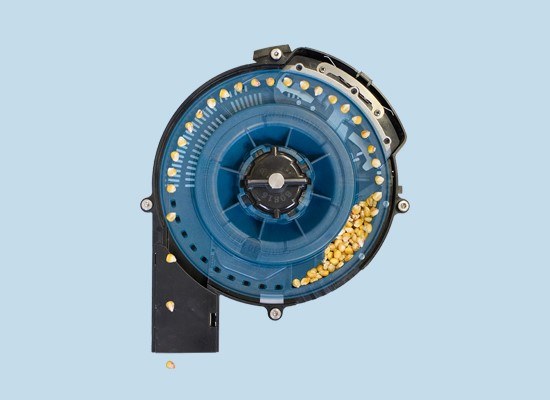

Kinze Vacuum Seed Meter 2

Precise Seed Metering

From the 99%+ accuracy of the True Rate™ vacuum meter, the simple versatility of the brush meter, to the proven design of the finger pick-up meter, Kinze offers a full line of meters to match your operation, crops and farming practices. To learn more about the differences and advantages of each meter, read more here.

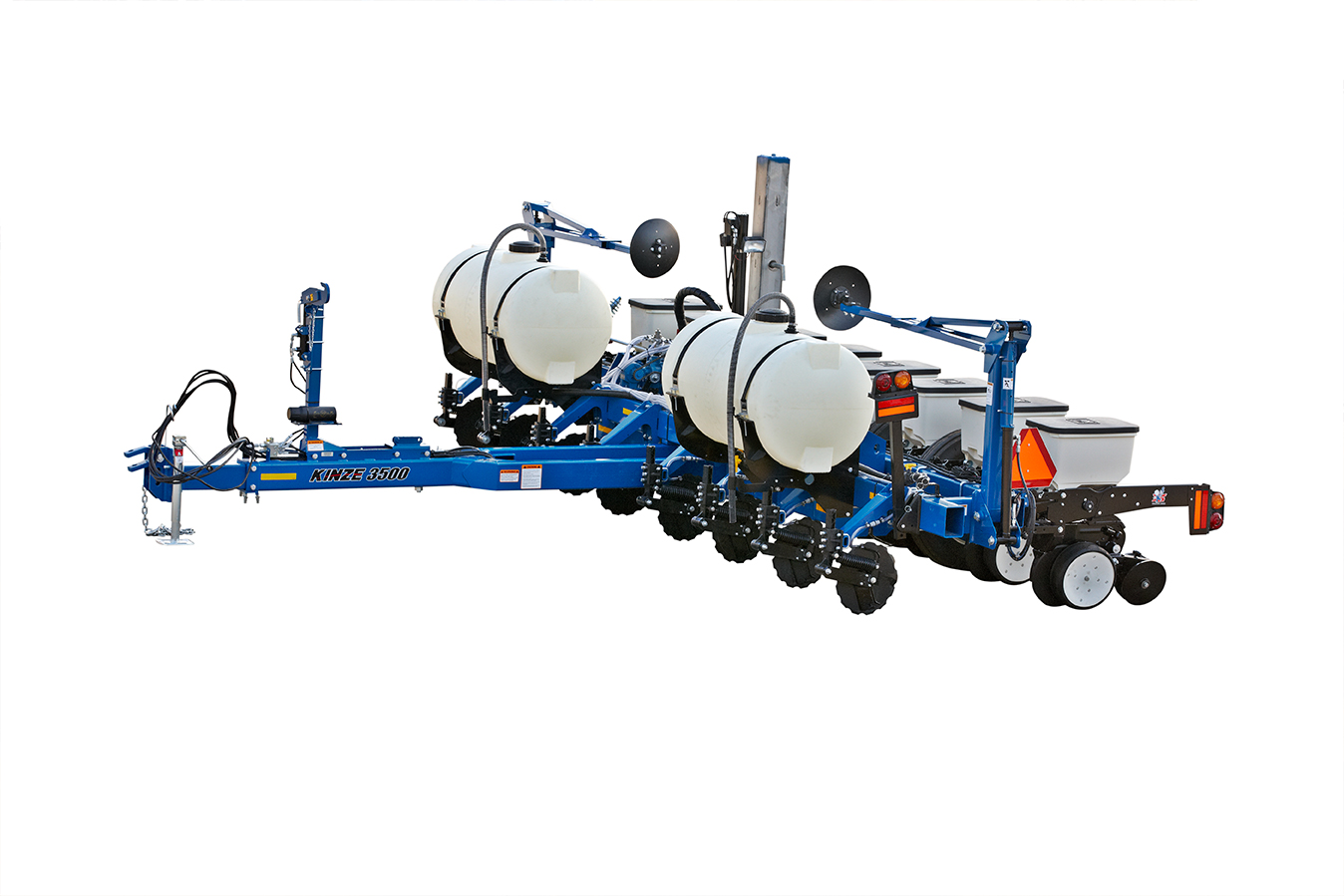

3500 Rear 8 R Liq

Fertilizer Delivered Your Way

Fertilizer practices are dependent on your farming practice, and the 3500 planter provides plenty of options. Choose between liquid fertilizer or dry fertilizer to closely manage this critical input cost and increase profitability.
