Pivot Fold Packed with Advanced Features

Built on the legacy of the proven 3600, the Kinze 3660 is the most advanced split row planter operating in fields today. The innovative frame design features an integral hydraulic weight transfer system, lifting rock axle, 26˚ of toolbar flex, and supports 120 bushels of seed capacity. The hydraulic meter drive system and control system seamlessly integrate with the latest farm management technology to further increase productivity and profitability. It can be equipped with True Rate™ vacuum or mechanical meters, liquid fertilizer, conventional hoppers, and numerous other options to match your operation.

NEW for spring planting 2019, the Kinze Blue Vantage™ display, Kinze Blue Drive™ electric drive system and True Depth™will be available on the 3660. Learn more here.

3660 Tu201801 740X450 3660Field 3660Field2

Kinze 3660 Planter
Three Clicks to Plant - Kinze Blue Vantage™ Planter Display
3660 Tu201801 740X450 3660Field 3660Field2


  • 12 Row 30"
  • 16 Row 30"


  • Pivot Fold
  • Meter: Finger Pickup, Brush, Vacuum
  • Drive: Electric, Hydraulic
  • Split Rows
  • Seed Handling: 110 bu. Bulk Fill, Row Unit Hoppers
  • Fertilizer: Liquid
Find Your Dealer

Retrofit Kits

Update your Kinze planter with new technologies to boost yield and increase profit.


Learn more about the technology of this planter. See all the specs and parts available.

Spec Sheet

Can’t decide? See all of our planters side by side with basic details for each.

Our Features

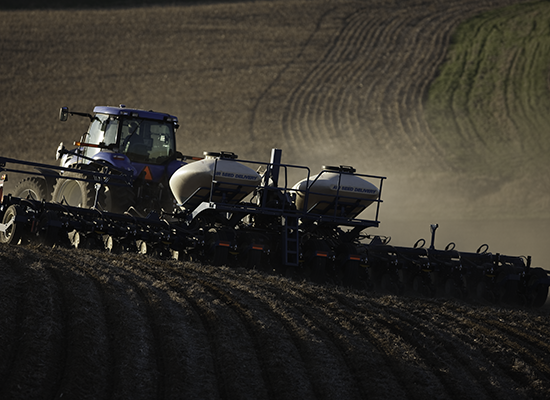

3660 Innovative Frame

Advanced Frame Design

Experience added dependability and convenience of the robust and clean frame design. Equipped with an integrated vacuum manifold, a hydraulic weight transfer system, 26˚ of total toolbar flex, and breakaway markers, the frame is designed to handle the weight of bulk fill, fertilizer, and split row options. The rock axle design provides more clearance for crossing waterways, railways, and ground contours.

20180523 Blue Vantage Plant Screen In Cab Updated 550 X 400 Px

Precision Made Simple

Farming today relies upon precision control for efficiency and profitability, but until now it has not always been easy to setup or simple to control. Introducing Blue Vantage™ and Blue Drive™ — both designed by Kinze for Kinze.  The new Blue Drive electric drive system works seamlessly with Blue Vantage to analyze critical planting data to deliver seed exactly where it needs to be. The Blue Vantage display enables you to simply confirm settings on three screens to be ready to plant.

True Depth Cob With Applied Force Screen Embedded 550 X 400 Px

Consistent Seed Depth - Automatically

From sandy loam and open fields, to packed clay and headlands — soil types and conditions can quickly change while you’re planting. The new Kinze True Depth™ hydraulic down force system provides row-by-row automatic down force for consistent seed depth and optimal crop emergence. Equipped with quick reacting hydraulics and an automatic control system, True Depth eliminates manual adjustment and frees you to focus on getting seed in the ground.

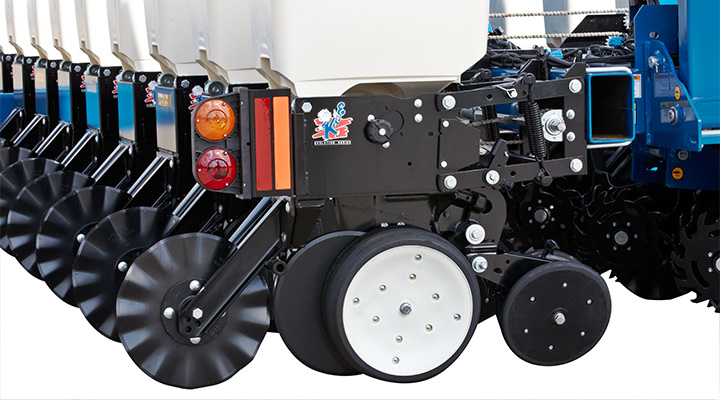

Even Row Split Rows720

Split Rows Without Slowing for Residue

Switch from 30” to 15” row spacing quickly and easily with one planter. With the exclusive Kinze push split row units positioned on twin tool bars, trash is able to flow easily and cleanly beneath the planter. This improves seed placement accuracy and planting efficiency over other split row planters.

Kinze 110 Bu Bulk Fill

Hassle-Free Seed Delivery

The 110 bu. bulk fill seed delivery system significantly reduces the downtime caused by plugging and bridging, by suspending and distributing seed in a constant stream of air. With a blower fan as the only moving part, maintenance is minimal. Easy clean out, an easy-access platform, and quick-lock lids make refilling faster and easier.

Metering Collage 550X400

Precise Seed Metering

From the 99%+ accuracy of the True Rate™ vacuum meter, the simple versatility of the brush meter, to the proven design of the finger pick-up meter, Kinze offers a full line of meters to match your operation, crops and farming practices. To learn more about the differences and advantages of each meter, read more here

Hydraulic Weight Transfer720

Reduce Pinch Row Compaction

Pinch row soil compaction causes more problems than you can see – it reduces the amount of oxygen and water that reach plant roots, potentially reducing yield. The Kinze hydraulic weight transfer system automatically distributes the weight of the bulk fill hoppers across the width of the toolbar, potentially reducing yield loss due to pinch row compaction.

Unique Pivot Folding Toolbar720

Field to Road - Safe, Fast and Easy

The pivot fold frame of the 3660 quickly lifts and rotates to a narrow 11’ 2” transport width to get you quickly and safely down the road. An integral rock axle quickly lifts the planter at headlands and provides optimal clearance through the field.

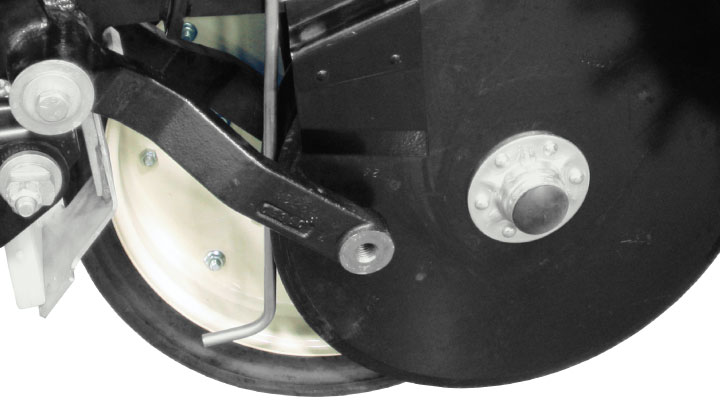

Kinze Liquid Fert Tubein Furrow

Low-Rate Fertilizer

Onboard fertilizer capacities range from 550 gallons when equipped with bulk fill hoppers, to 600 gallons with conventional hoppers, with many different opener options available. Improve row-to-row consistency at very low rates with the optional John Blue piston pump. For in-furrow application of fertilizer, a liquid drop tube option is easily added.
