Advanced and Ready to Plant Corn

Starting with a rugged and versatile front fold frame, and equipped with True Rate™ vacuum meters and an electric drive system, the Kinze 4900 has the advanced features to deliver the accuracy, productivity, and bottom line profitability your farm requires. Available in 12, 16 or 24 row configurations, with bulk fill or row unit hoppers, the narrow transport 4900 is well suited for almost any size farm. With several fertilizer, drive, meter, and attachment options to choose from, it has the built-in versatility to match your operation.

NEW for spring planting 2019, the Kinze Blue Vantage™ display, Kinze Blue Drive™ electric drive system and TrueDepth™ will be available on the 4900. Learn more here.


Configurations

  • 12 Row 30"
  • 16 Row 30"
  • 24 Row 30"

Details

  • Front Fold
  • Meter: Vacuum, Finger Pickup, Brush
  • Drive: Electric, Hydraulic, Ground Contact
  • Hydraulic Weight Transfer
  • No Split Rows
  • Seed Handling: 120 bu. Bulk Fill on 16 and 24 row configurations and 90 bu. for 12 row configurations, Row Unit Hoppers
  • Fertilizer: Liquid
Find Your Dealer

Retrofit Kits

Update your Kinze planter with new technologies to boost yield and increase profit.

Manuals

Learn more about the technology of this planter. See all the specs and parts available.

Spec Sheet

Can’t decide? See all of our planters side by side with basic details for each.

Our Features

20180523 Blue Vantage Plant Screen In Cab Updated 550 X 400 Px

Precision Made Simple

Farming today relies upon precision control for efficiency and profitability, but until now it has not always been easy to setup or simple to control. Introducing Blue Vantage™ and Blue Drive™ — both designed by Kinze for Kinze. The Blue Vantage™ display enables you to simply confirm settings on three screens to be ready to plant.  and the new Blue Drive™ electric drive system works seamlessly with Blue Vantage™ to analyze critical planting data to deliver seed exactly where it needs to be. Available for spring planting 2019; learn more here.

True Depth Cob With Applied Force Screen Embedded 550 X 400 Px

Consistent Seed Depth - Automatically

From sandy loam and open fields, to packed clay and headlands — soil types and conditions can quickly change while you’re planting. The new Kinze True Depth™ hydraulic down force system provides row-by-row automatic down force for consistent seed depth and optimal crop emergence. Equipped with quick reacting hydraulics and an automatic control system, True Depth™ eliminates manual adjustment and frees you to focus on getting seed in the ground.

Hydraulic Weight Transfer720

Reduce Pinch Row Compaction

Pinch row soil compaction causes more problems than you can see – it reduces the amount of oxygen and water that reach plant roots, reducing yields. The standard Kinze hydraulic weight transfer system automatically distributes the weight of the bulk fill hoppers across the width of the toolbar, potentially reducing yield loss due to pinch row compaction.

Kinze Vacuum Seed Meter 2

Precise Seed Metering

From the 99%+ accuracy of the True Rate™ vacuum meter, the simple versatility of the brush meter, to the proven design of the finger pick-up meter, Kinze offers a full line of meters to match your operation, crops and farming practices. To learn more about the differences and advantages of each meter, read more here

4900 Flex 550X400

Frame Flex to Maintain Superior Ground Contact

Critical to consistent seed depth, good emergence and ultimately profitability, is row units that can follow the terrain. With 42˚ of total toolbar flexibility, the row units on a 4900 planter maintain ground contact on rolling terrain and terraces, ensuring your seed is where it should be: in the ground.

4000 Series Row Unit

Rugged and Accurate Row Units

The rugged, accurate, and versatile Kinze 4000 series row unit delivers the crop emergence and stand you need. Constructed of durable cast-iron, and able to travel 12” vertically, seed depth is maintained in constantly changing field conditions. Various attachments ensure a quality seedbed for optimum germination. Learn more about this innovative row unit.

Kinze 120 Bu Bulkfill 1

Hassle-Free Seed Delivery

The bulk fill seed delivery system significantly reduces down time caused by plugging and bridging, by suspending and distributing seed in a constant stream of air. With a blower fan as the only moving part, maintenance is minimal. Easy clean out, an easy-access platform, and quick-lock lids make refilling faster and easier. 120 bushel capacity with 16 and 24 row; 90 bushel on the 12 row 4900.

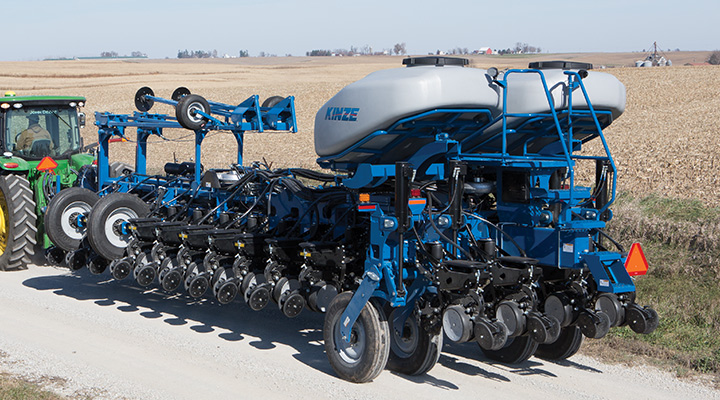

Narrow12 Transport Front Fold720

Field to Road - Safe, Fast and Easy

The front fold design of the 4900 planter makes moving from field to field safe and efficient. It quickly folds to a narrow transport width of 12’, making it easy to navigate down the road and through narrow openings. And the exclusive, patented, hydraulically activated flip axle, available on 24 row planter only, shortens the hitch-to-axle length by almost 5’, allowing a smaller turning radius.
