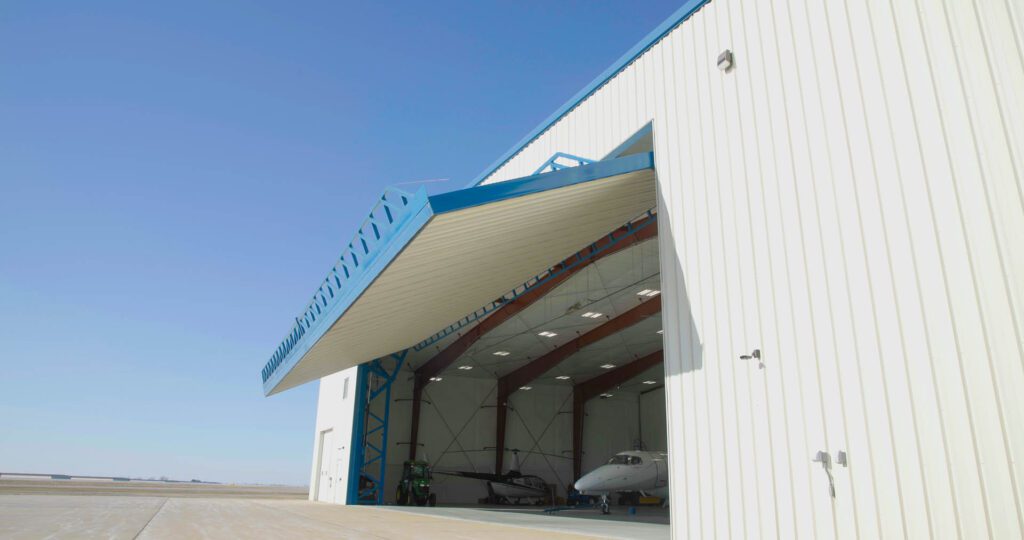

KINZE Offset-Pivot Hydraulic Door

Built on Kinze’s 60-year history of building innovative, durable, and easily maintained equipment, these doors were initially designed and manufactured out of the need for large doors at Kinze Manufacturing in the 1980s. Since then, numerous doors have been built for production facilities, machine sheds, and aircraft hangars – continuously improved with over 40 years of research, development, and practical use.

Do you have a door project?

To better understand your door requirements, click the button below, fill out and submit the form, and a representative will contact you.

Request additional information

Key Features and Benefits

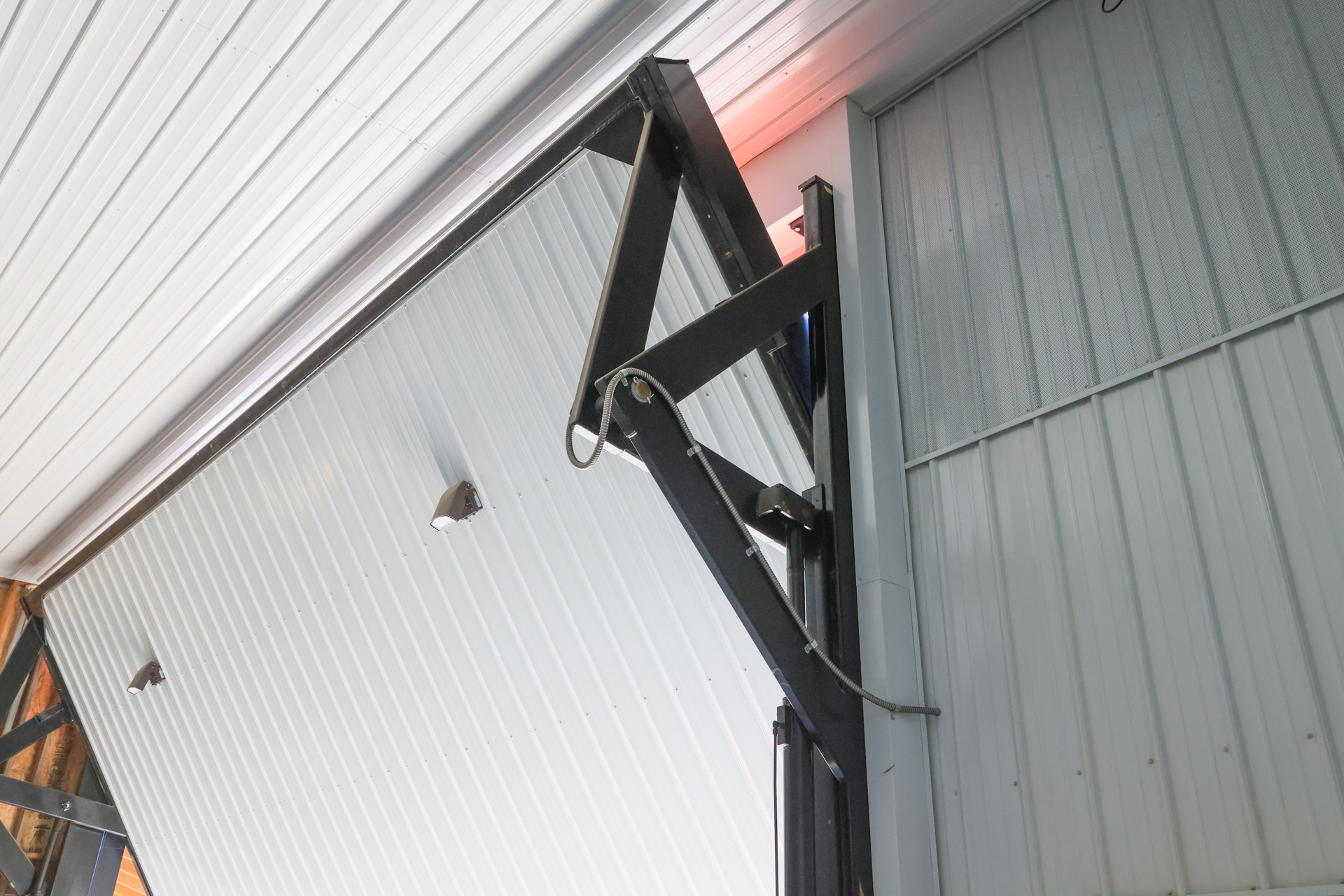

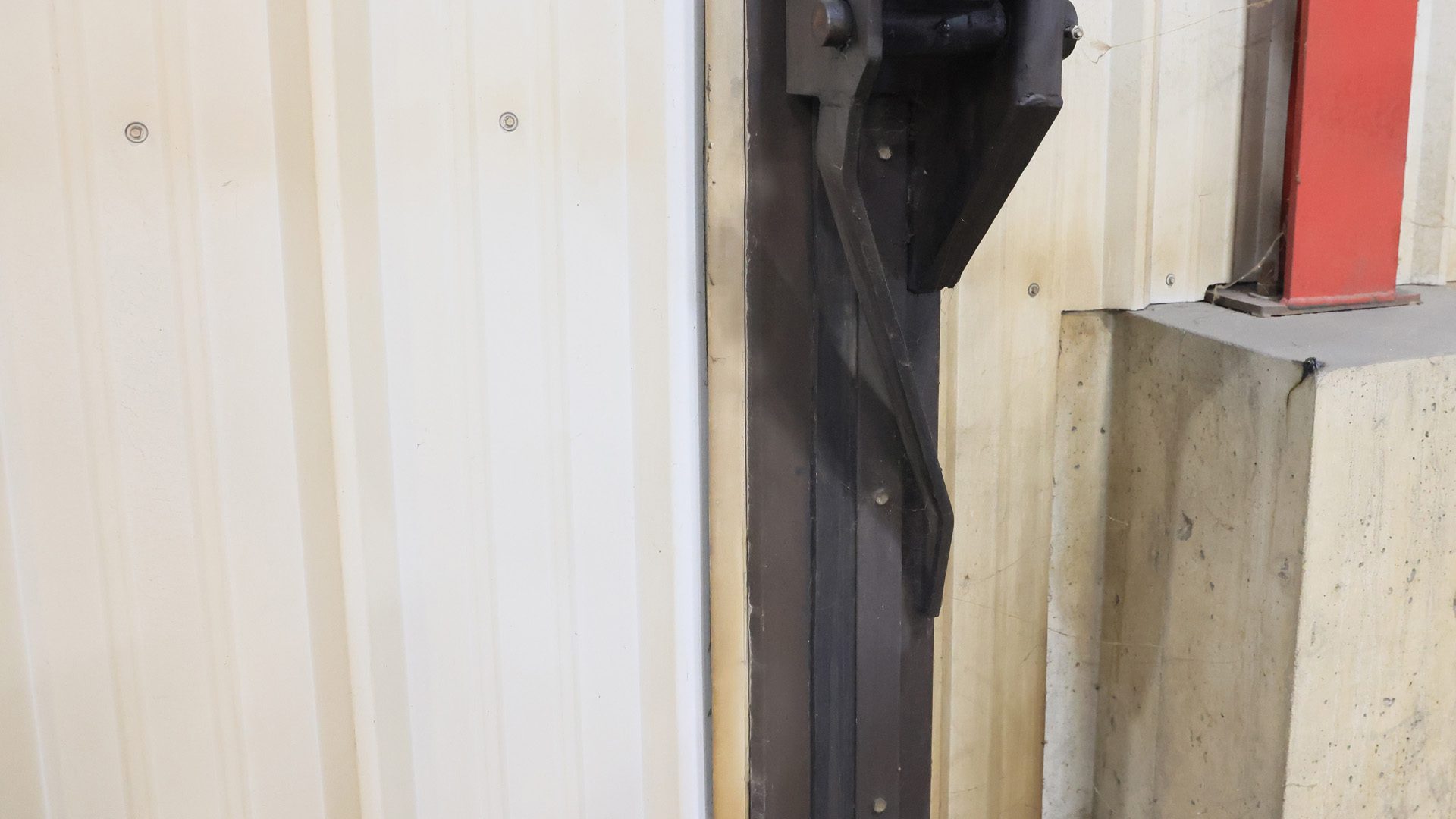

Offset-pivots require less lateral cylinder movement, provide greater stability, and are equipped with maintenance-free bearings

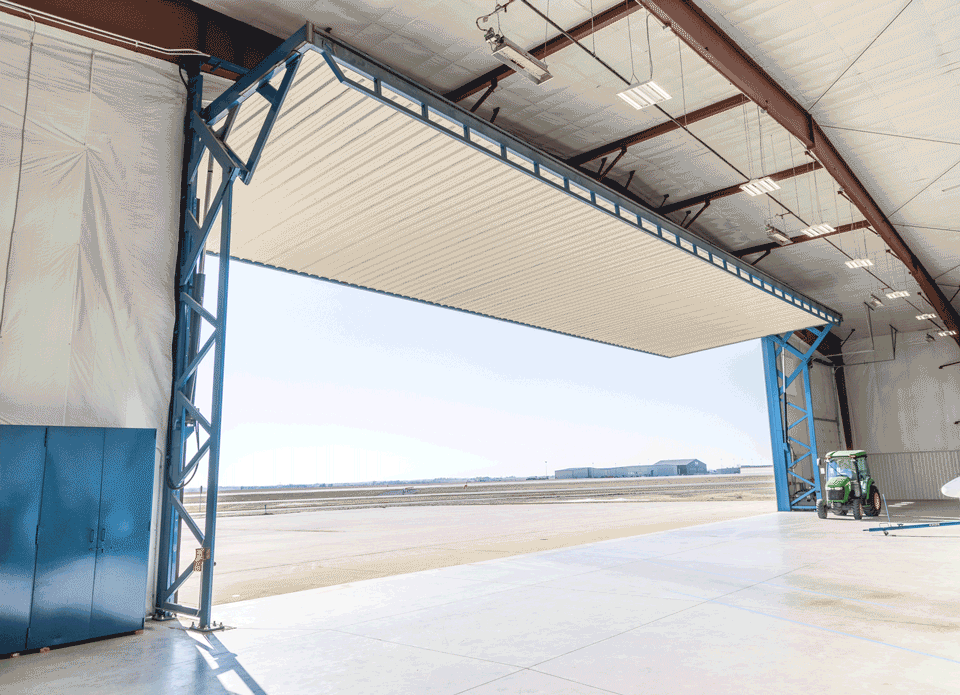

Free-standing design adds no vertical load to the building structure
Door frame can be engineered to support roof trusses
Wind loads are transferred to the door frame
Operates and can remain open in high winds
Stops at any position without drifting
Powder coat paint is standard
Builder installs exterior skin to match exterior of building
Builder installs insulation as needed, including spray foam insulation
Widths of 12 – 100 feet and heights 10-30 feet (*over 100 ft door capable with custom engineering)

Frame and door are precision bolted and welded on-site

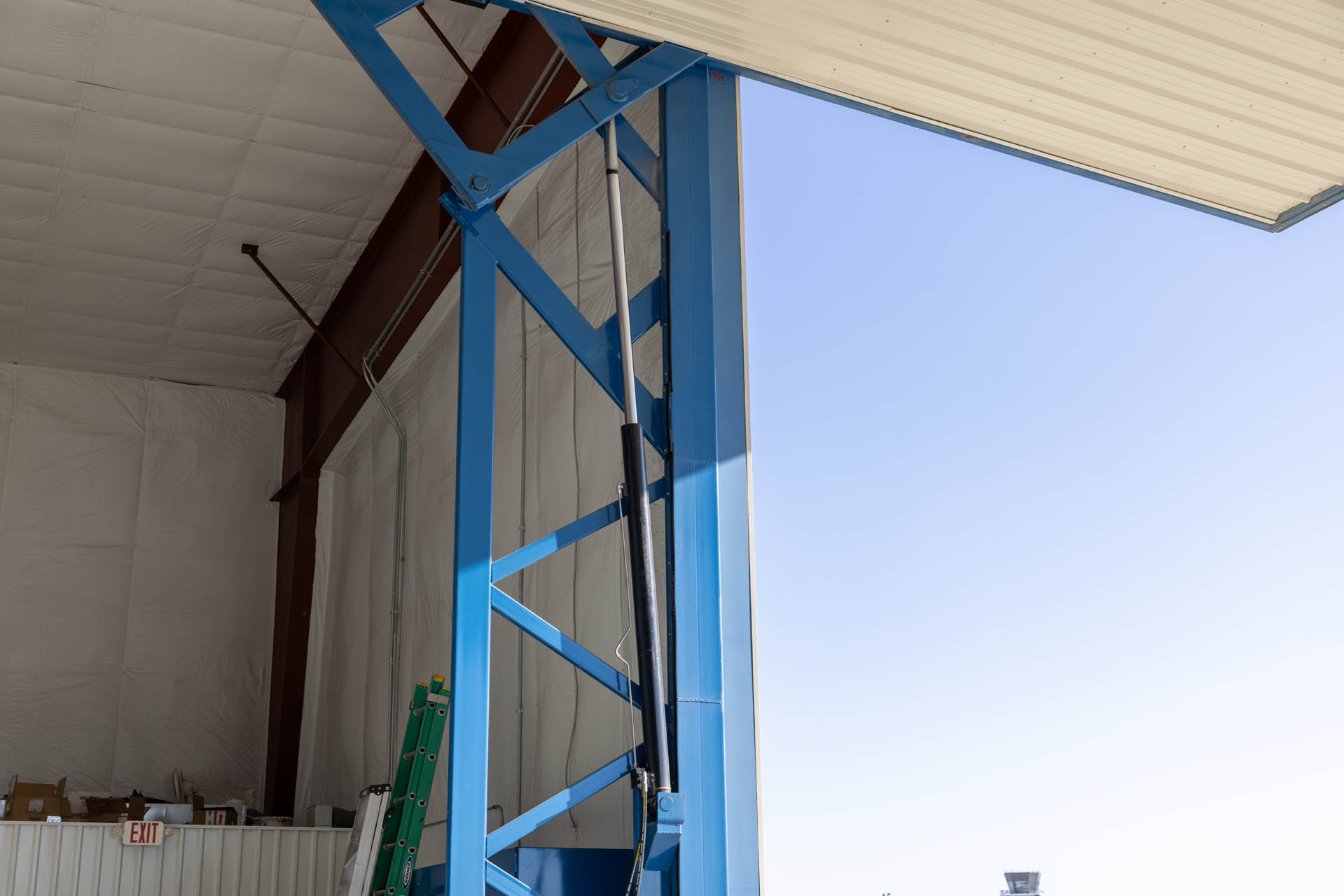

Kinze-made, durable hydraulic cylinders have easily serviced and available components

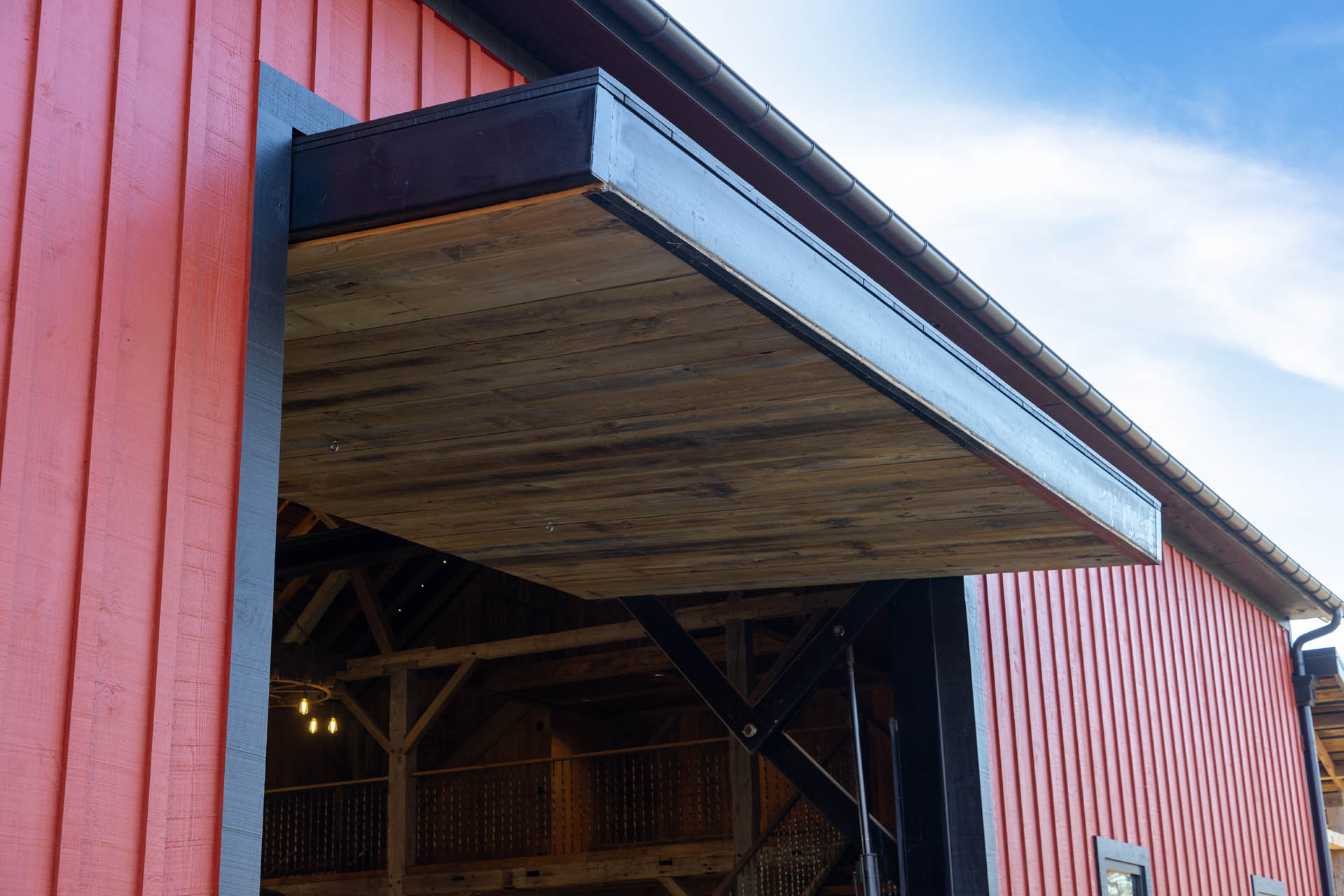

Exterior overhang is less than a conventional hinged hydraulic door

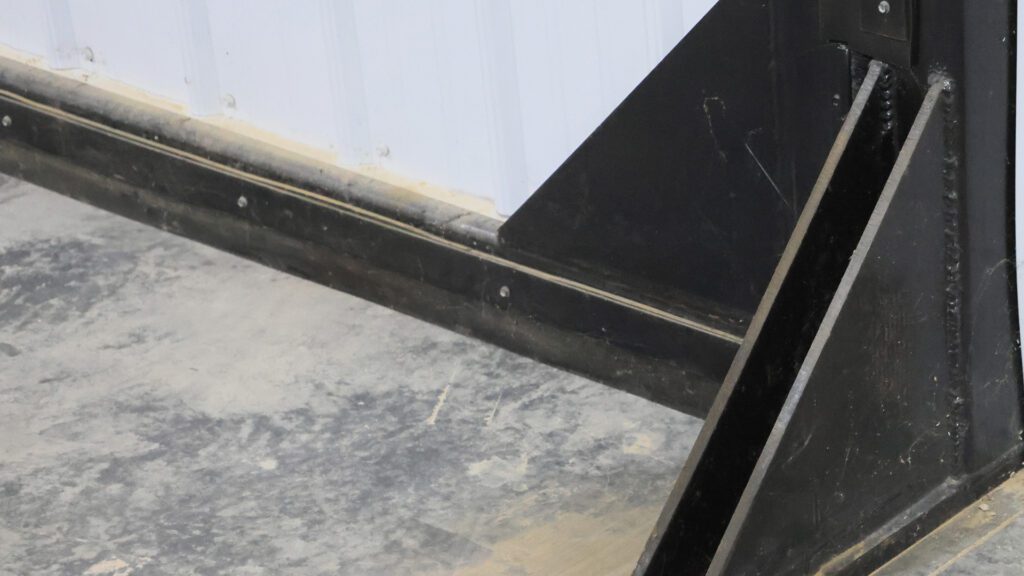

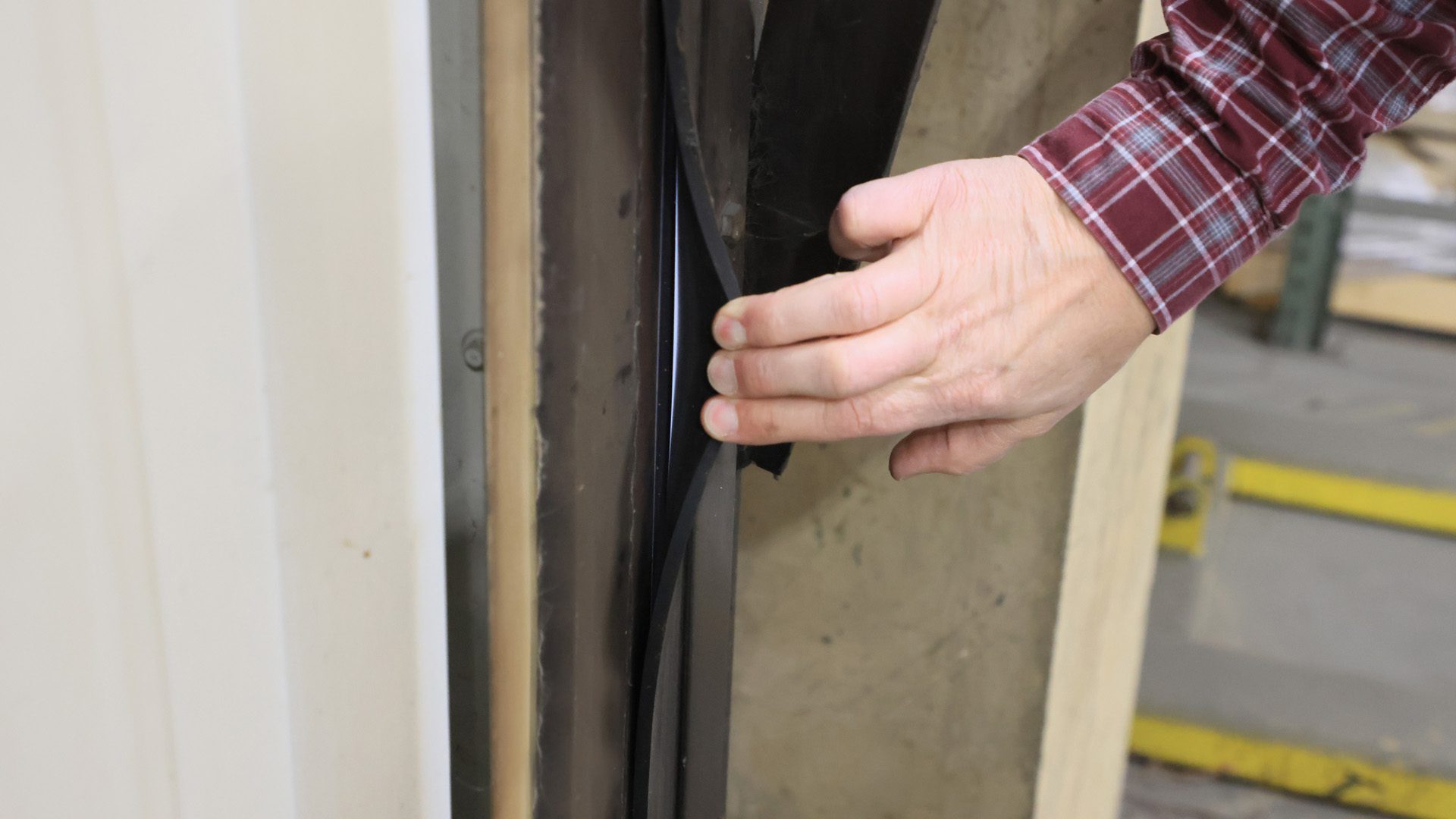

Heavy-duty weather strip gaskets keep the weather out
Exterior and interior surfaces are ready for customization
Door packages include door, frame, cylinders, pump, hoses, and controls
Overhead hose clamps route and secure the hydraulic hoses

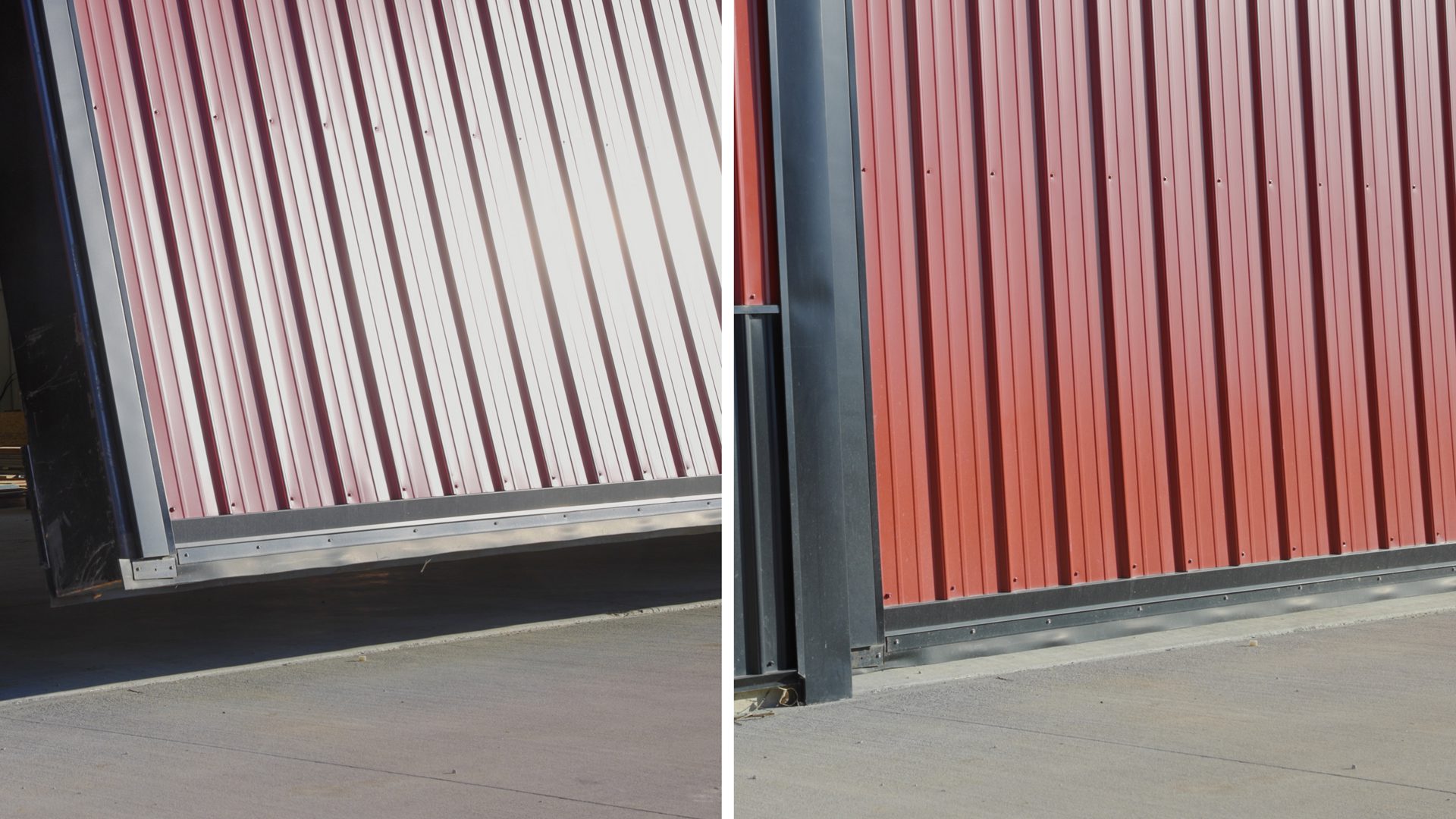

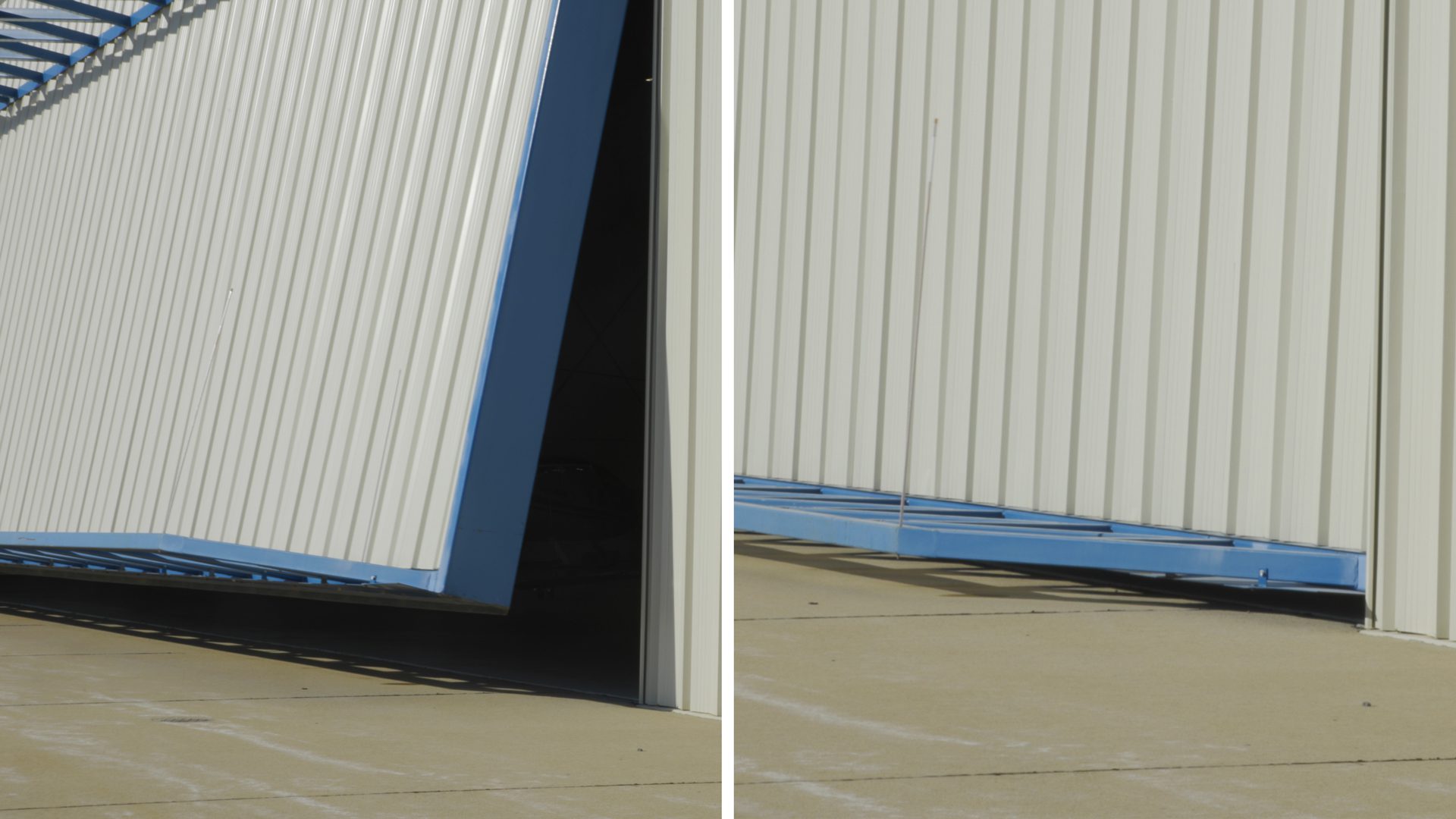

Cylinders push up to break contact so door doesn’t freeze down in icy conditions
5-year limited warranty

Real Customer Review

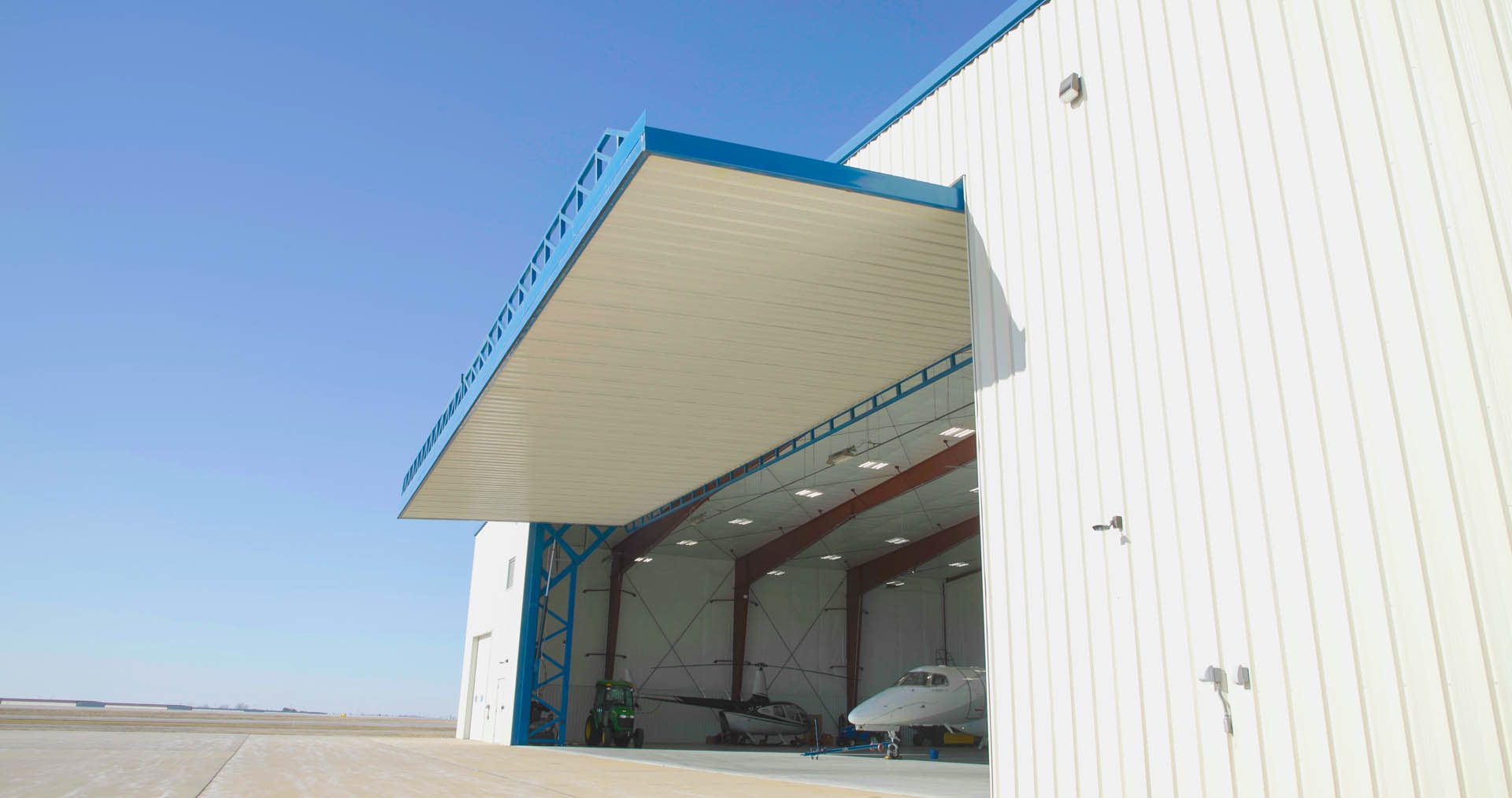

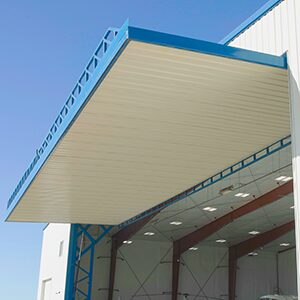

Aviation

Commercial

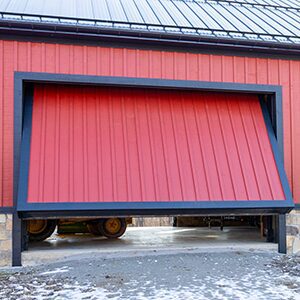

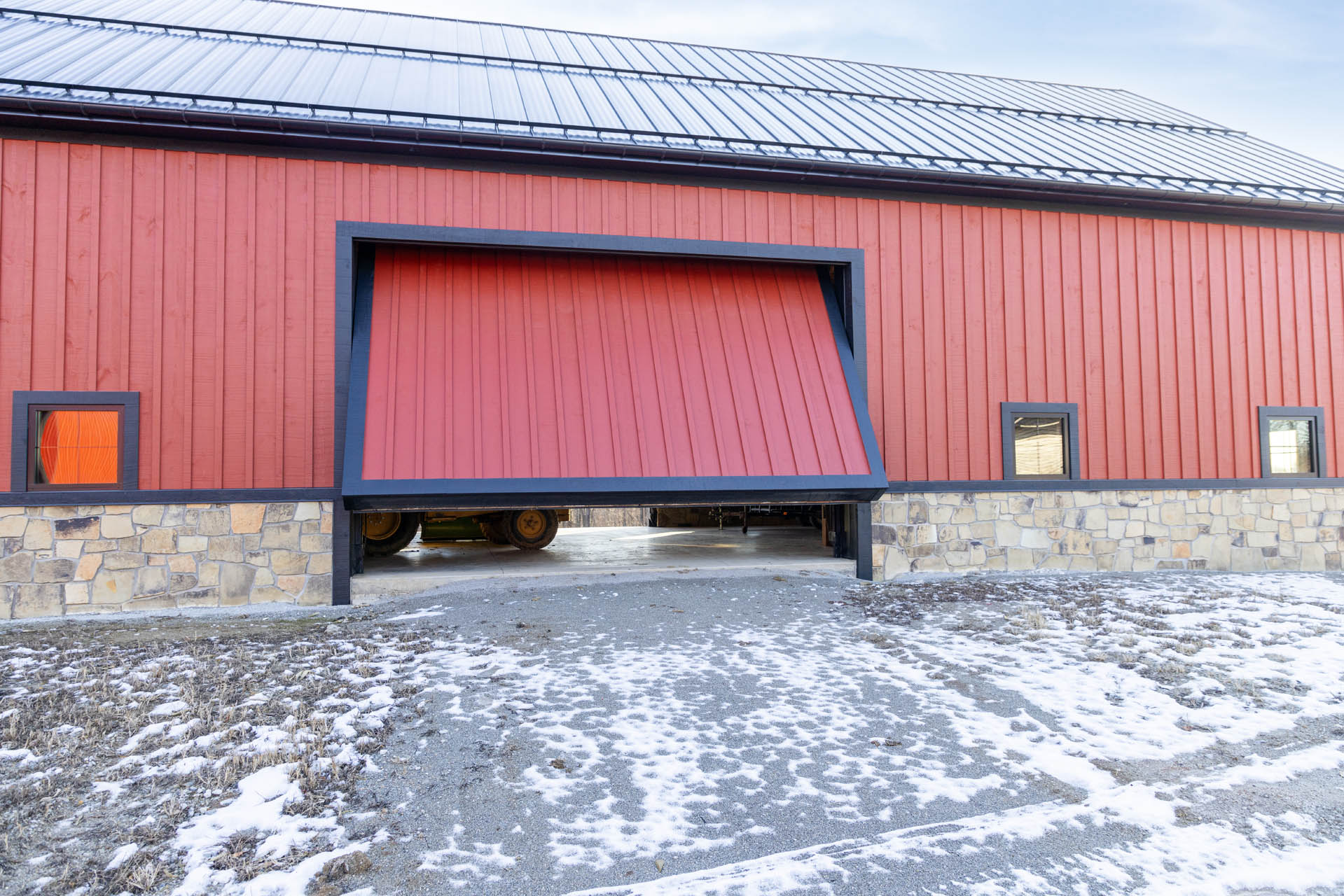

Agriculture

Cylinders Built In-House.
Refined Over Decades.

Kinze has earned its reputation by engineering dependable hydraulic systems for demanding agricultural applications. That experience is built into every hydraulic door we produce. Rather than relying on off-the-shelf hydraulic cylinders, Kinze designs and builds its hydraulic cylinders in-house, giving us complete control over system performance, component quality, and reliability. Every cylinder is engineered to work seamlessly with the door, delivering smooth operation, dependable lifting power, and the long-term durability customers expect from the Kinze name.
